उत्पाद विवरण:
|
| नाम: | वायु तोप परीक्षण मशीन | मानकों: | एएसटीएम ई1886-2005, एएसटीएम ई1996-2008 |
|---|---|---|---|
| वायु तोप का कार्यशील दबाव: | 0.4-0.8mpa | स्टील बॉल: | द्रव्यमान 2G ± 0.1g |
| प्रक्षेपण गति: | 39.6 एम/एस | वज़न: | 400 किलो |
| गारंटी: | 12 महीने | डिलीवरी का समय: | 20 कार्य दिवस |
| प्रमुखता देना: | ASTME1996 window testing machine,door testing machine standard,lab testing machine for windows |
||

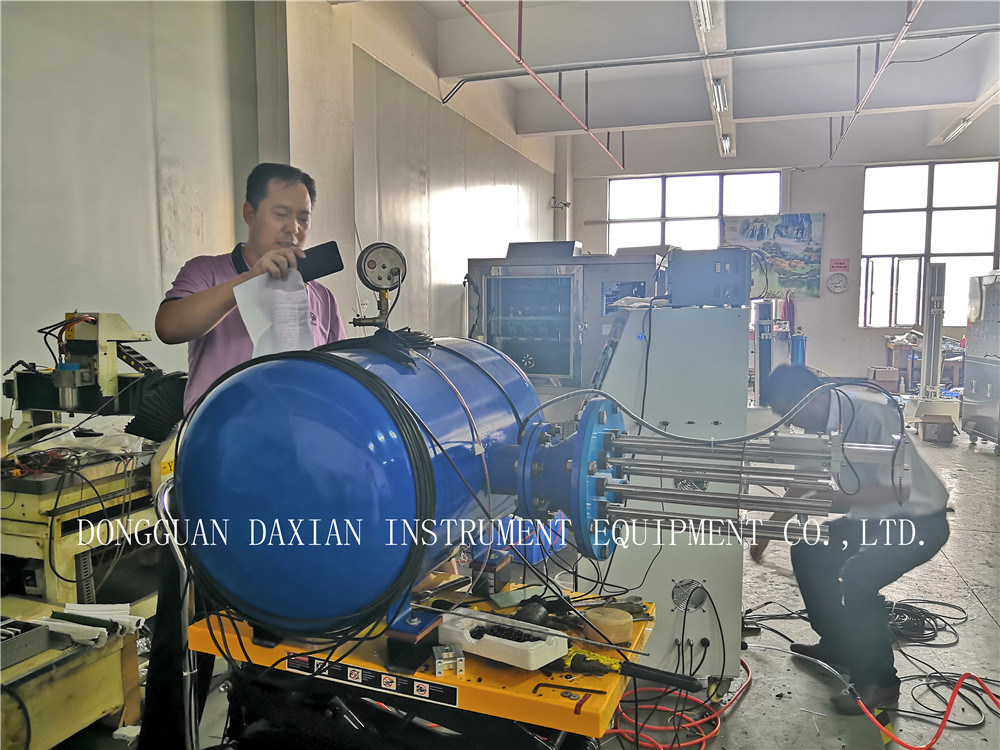

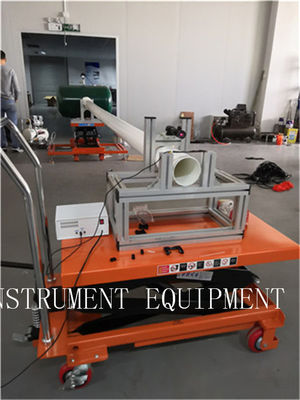

ASTM E1886 ASTME1996 Standard Testing Machine For Testing Windows Or Doors
[Product overview]:
The device is designed and developed in accordance with the new standard classification and testing method of wind carrying debris impact resistance of building curtain walls, doors and windows modified by ASTM e1886-2005, ASTM e1996-2008 and other foreign standards.
[standard]:
As per standard ASTM E1886-2005,ASTM E1996-2008.
[Technical parameters] :
| Ambient temperature | - 10 ℃ ~ 50 ℃ |
| Working pressure of air cannon | 0.4-0.8mpa |
| Ambient temperature | - 10 ℃ ~ 50 ℃ |
| Steel ball | mass 2G ± 0.1g, launch speed 39.6 M / s |
| Mass of wood 1 | 6.79kg; Launch speed: 32.15m/s |
| Mass of wood 2 | 4.1kg; Launch speed: 43.05m/s |
| Rated voltage of magnetic valve | AC 220V |
[Product features]:

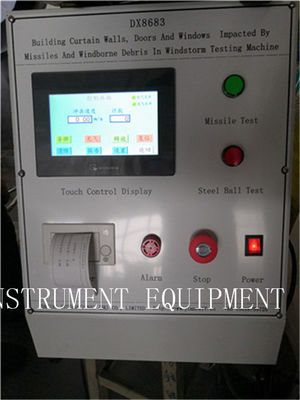

The equipment uses two photoelectric sensors of the same model to record the time when the projectile passes through the two sensors through an electronic timer. The response frequency of the electronic timer shall not be less than 10kHz and the response time shall not exceed 0.15ms. The velocity of the projectile is calculated by dividing the distance between the two photoelectric sensors by the time counted by the electronic timer.
